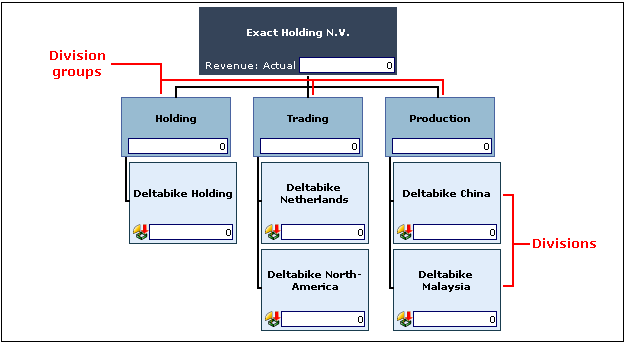

On this page, you can display the list of subgroups, which are the division groups. These groups are used to group the divisions. You can set up the groups if you want to have a better view of the organization structure and operational performance analysis. See the following screen for an example of the organization chart:
To maintain the layout and groups for divisions, function right 49 – Maintain Division Layout is required. Users with the General manager or Controller role have this function right.
Notes:
The information in this document is based on product update 250.
Keep in mind: All fields with the "!" icon are mandatory.
Click this to save the details of the group layout.
Click this to exit.
This displays the ID of the group layout. This ID cannot be edited.
Type the description of the group layout.
Type a number to define the number of subgroups to be displayed on a single page. Click Show to update the page size.
This column displays the names of the subgroups (level 1).
This column displays the descriptions of the subgroups (level 1). You can click the hyperlink of a subgroup to modify the description or add subgroups (level 2 onwards) to the respective group layout. To create a subgroup (level 2), click New. For more information, see Creating and modifying groups. You can also click the Divisions hyperlinks next to the Description column to search for divisions. For more information, see Overview of divisions.
