This document describes how to consume the ProductionHourRealization entity to perform labor/machine hour realization for a production order in Exact Globe Next.
The functionality provided in this entity is very close to the functional behavior when performing a production labor hour realization in the standard Exact Globe Next application (at Projects ? Entries ? Authorise). For machine hour realization, the functionality is similar to issuing machine hour in the standard production issue application.
The entity supports the following actions:
Optional field (Long)
In retrieve set, this field indicates the actual quantity already realized for the production hour line. If the value is greater than 0, this means the line has been realized.
For entity, this field indicates the actual quantity to be realized for the production hour line. If no value is provided or the value is 0, then the value will be calculated based on Starttime and EndTime.
This value is based on hour unit.
This field is only required upon performing the Create action.
Read only field (Boolean True/False)
The field indicates whether the item is back flush for the production hour line.
Read only field (String)
The field indicates the condition of the production issue line.
The following are the descriptions of the values:
N – Always
S - Once per production Order
F - Phantom
W – Waste
U - Once per production order
O – Optional
P - Packaging
Labor item - Mandatory field (date)
This field indicates the end time for the production labor hour line.
Actual quantity to be realized will be calculated based on this field if the actual quantity is not provided.
A value must be provided for this field.
Machine item - Optional field (date)
This field indicates the end time for the production machine hour line.
This field is optional.
Mandatory field (Long)
This field refers to the ID of the production issue hour line.
Use this ID to retrieve a single production hour line from the entity.
This ID should be provided upon performing the Create action. If the ID matches the production hour plan line, then the plan line will be updated based on the ID provided. Else, the plan lines in the production order will be updated based on following priority logics:
1. Consume plan line that matches the resource ID provided.
2. Consume plan line with the earliest start time.
3. Consume plan line with the largest plan quantity.
4. If no match, create an extra budget line.
Mandatory field (String)
This field indicates the item (labor/machine) that needs to be realized. The value must match the item code in the planned hour line.
This field indicates the item type of the production issue line’s item.
S – Standard
P – Phantom
B - Bulk issue
H - Labor hour
M - Machine hour
This field indicates the item description of the item in the planned hour line.
This field indicates the last modified date for the planned hour line.
This field shows the operation value of the planned hour line.
Read only field (Double)
This field indicates the original planned quantity for the production hour line that needs to be realized.
This field indicates the production order that needs to be issued.
This field is mandatory for the Create and Update actions.
A valid resource ID must be provided for this field upon performing the Create action.
This field shows the step value of the planned hour line.
Optional field (String)
This field is applicable to machine hour item only.
This field refers to the machine item.
If the value is provided, the actual line for the machine hour item will be created with this value.
This field indicates the start time for the production labor hour line.
This field indicates the start time for the production machine hour line.
The field indicates the last modified date of the planned production issue line.

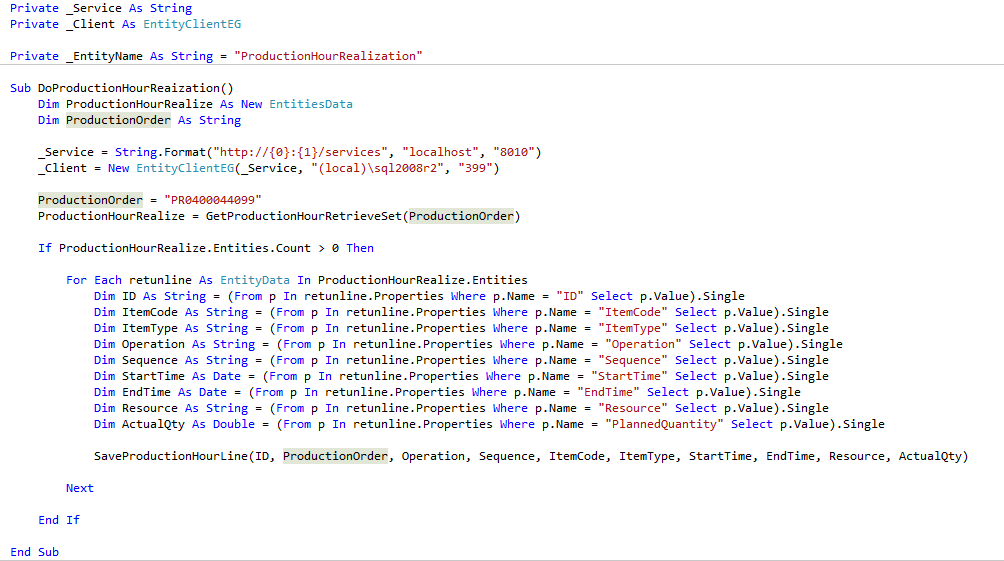

To create a production labor/machine hour realization with the ProductionHourRealization entity, user should consume the entity in following sequence:
Please refer to document 22.148.798 for the general guideline on how to consume Exact Entity.

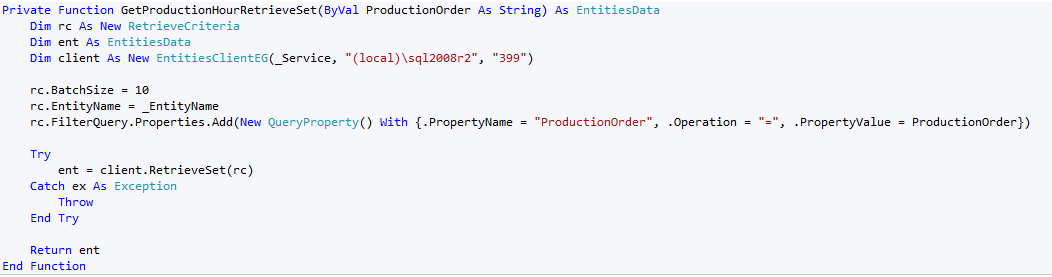

Step 1: Retrieve set

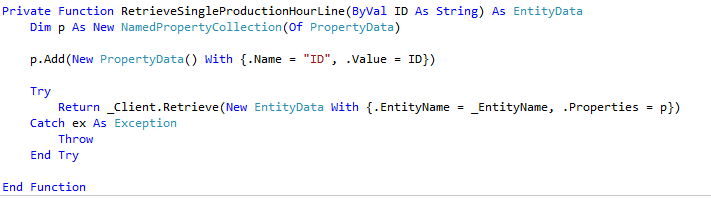

Step 2: Retrieve single production hour line (Optional)

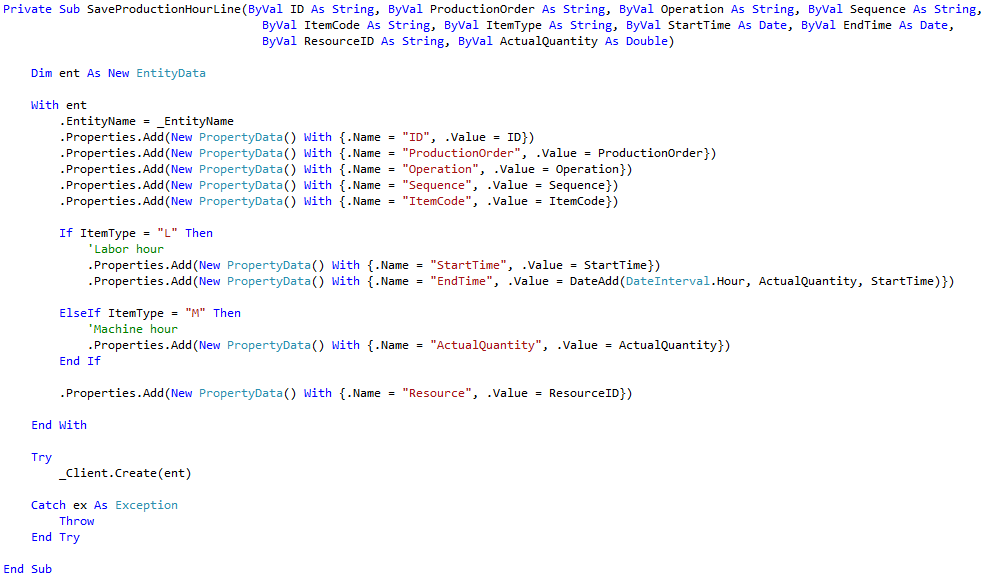

Step 3: Realize production labor/Machine line
The ProductionHourRealization entity is available from product update 406 onwards.
Document Number: 23.796.442
