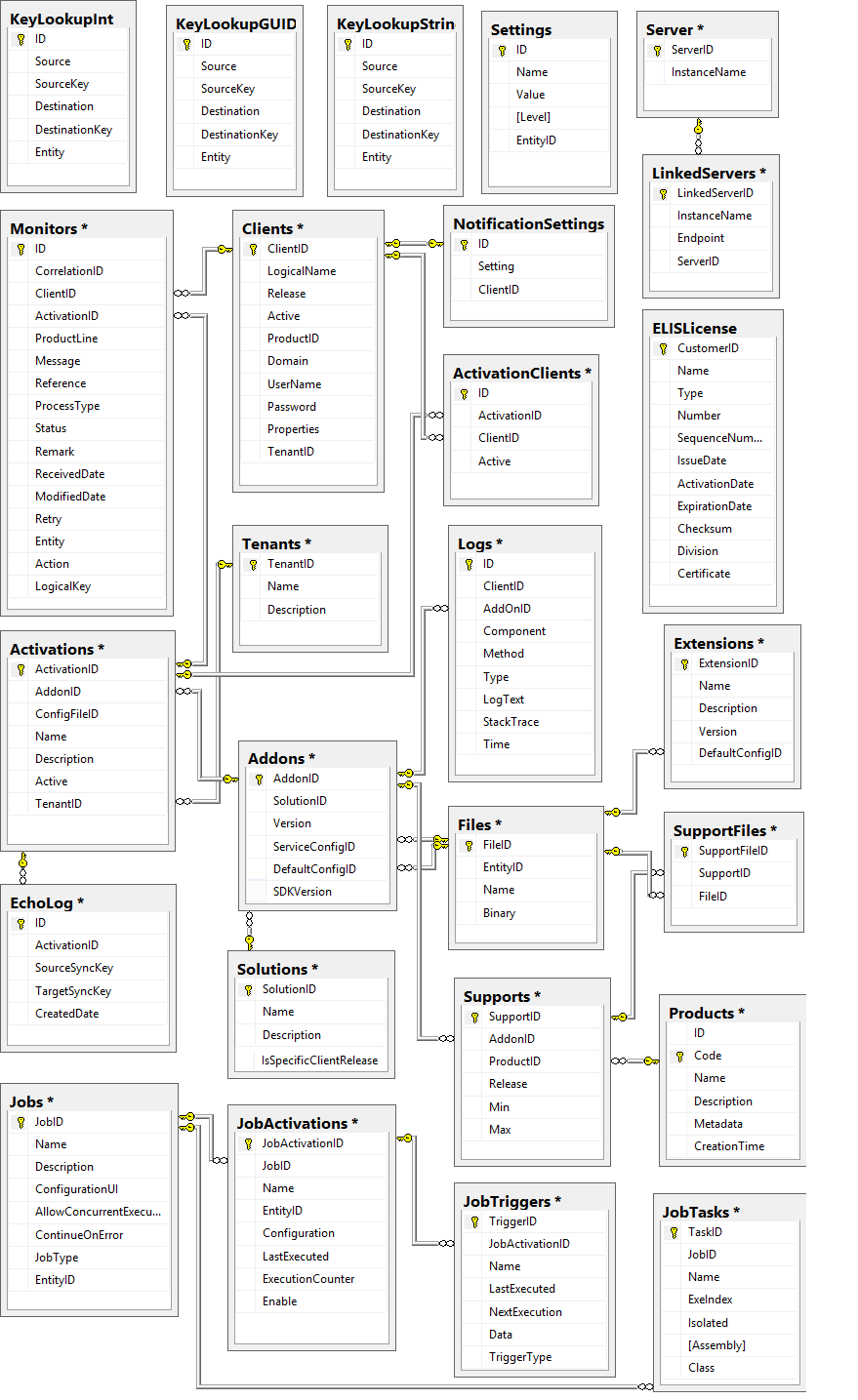

This document describes the database structure design of Exact Lightweight Integration Server (ELIS). The relationship between the tables and how the tables are linked to each other will be explained.
This table stores all the servers for ELIS that are connected to the database.
Column
Description
ServerID
Unique identifier of the server
InstanceName
Logical name of the server
This table is used for multi-tenancy whereby multiple ELIS are linked to one database. The information of the servers is stored in this table.
LinkedServerID
Unique identifier
Endpoint
Address of the endpoint
ID of the server information and this column refers to the Server table
This table stores the products that are installed in ELIS as extensions, for example, Exact Globe Next and Exact Synergy Enterprise.
ID
Unique identifier for each product
Code
Unique code to distinguish the different products, for example, Exact Synergy Enterprise and Exact Globe Next
Name
Product name
Product description
Metadata
Metadata of the endpoint package that describes the contents of the package
CreationTime
The time the product is created
This table stores the clients that are registered for each product, for example, different versions of a product that is installed in the same domain or different domains and machines. Every client is connected to the product by the ProductID.
ClientID
Unique identifier of the client
LogicalName
Unique logical name selected for the client
Release
Release version of the client
Active
Indicates whether the client has been activated
ProductID
Product ID of the client
Domain
Domain name indicating the location of the installed client
UserName
User name to connect to the client
Password
Password to connect to the client
Properties
Additional settings about the client in the XML format, whereby the format of these settings depends on the product that the client belongs
TenantID
ID of the tenant to which the client belongs
This table stores the information of thesolutions.
SolutionID
Unique identifier of the solution
Name of the solution
Description of the solution
IsSpecificClientRelease
A flag to identify if the solution is release-dependent
This table stores the information of the ELIS add-ons. Each add-on is related to a solution based on the SolutionID. The add-on binary files are stored in the Files table and accessible based on the DefaultConfigID and ServerConfigID fields.
AddonID
Unique identifier of the add-on
ID of the solution to which the add-on belongs
Version
Version number of the add-on
ServiceConfigID
Service configuration that is stored in the Files table
DefaultConfigID
Default configuration that is stored in the Files table
SDKVersion
SDK version of the add-on which is used to check the compatibility with the SDK version of the ELIS console
This table stores the information of the ELIS extensions. However, this table is currently not in use because there is no interface in the ELIS management console to register the extensions. This table is related to the Files table based on the DefaultConfigID field.
ExtensionID
Unique identifier of the extension
Name of the extension
Description of the extension
Extension of the version
ID of the extension configuration file that is stored in the Files table
This table indicates the product version that is supported by the add-on and the number of clients.
SupportID
Unique identifier of the support information
ID of the add-on
Product that is supported by the add-on, and this field refers to the Code in the Products table
Product version that is supported by the add-on
Min
Minimum number of clients that are supported by the add-on
Max
Maximum number of clients that are supported by the add-on
This table stores the files that are supported by the add-on.
SupportFileID
Unique identifier of the support file
ID that is referring to the Supports table
FileID
File ID that is supported by the add-on, and this field refers to the Files table
Each add-on will be activated based on a different set of clients with different configurations. This table stores all the add-ons that have been activated and the information of the configurations.
ActivationID
The add-on ID that is activated, and this field refers to the Addons table
ConfigFileID
ID of the configuration file for each activation
Name of the activation
Description of the activation
Indicates whether the configuration is active
This table stores the clients that are attached to the activation.
Activation that is linked to the client, and this field refers to the Activations table
Client that is attached to the activation, and this field refers to the Clients table
Indicates the status of the activation
This table stores the files that are used by ELIS including the configurations, libraries, and other files.
EntityID
The entity to which the file belongs, such as product, add-on, and others
Name of the file
Binary
The file in binary format
This table stores the information of the messages so that the message echo will be blocked.
The activation ID that causes the echo, and this field refers to the Activations table
SourceSyncKey
Synchronization key that is generated at the source node
TargetSyncKey
Synchronization key that is generated at the target node
CreatedDate
The date the message was created
This table stores the notification messages.
Unique identifier of the monitor
CorrelationID
Unique identifier that is used to group the messages related to a particular operation
ID of the client that triggered the operation, and this field refers to the Clients table
ID of the activation of the message, and this field refers to the Activations table
ProductLine
The product line of the message, and this field refers to the Products table
Message
The message received by ELIS
Reference
This is a reserved field for internal use
ProcesType
Indicates the components that are processing the message, whereby “0” is for ELIS and “1” is for the provider
Status
An integer value that indicates the status of the message, whereby “0” is for received, “1” for pending, “2” for processing, “3” for successful, “4” for failed, "5" for re-trying, "6" for echo, and "7" for skipped
Remark
Remark that describes the additional information of the message
ReceivedDate
Date and time the message was received
ModifiedDate
Last date and time the message was modified
Retry
Number of times the message was processed
Entity
Entity on which the operation is performed
Action
Action to be performed, such as create, read, update, and delete
LogicalKey
Entity key
This table stores the information of theoperations that have been performed by ELISand the errors that occurred during the operations.
Unique identifier of the log
ID of the client that is involved in the operation
ID of the add-on that is involved in the operation
Component
Component that performs the operation
Method
Method of performing the operation
Type
Type of log, whereby “0” is for the information and “1” is for the error
LogText
Text message of the log
StackTrace
Stack trace to find the sequence of the methods that are involved in the operations
Time
The time the log was created
This table stores the settings of ELIS. This table is currently used forSMTP server settings.
Property name of the setting
Value
Value of the setting property
Level
Integer value that indicates the setting of the entity, such as ELIS, add-on, activation, and client
ID of the entity
This table stores the information for thenotifications. Currently, only the recipient email address for each endpoint isstored.
Settings
Settings that separate the email addresses by commas
ID of the client that is related to the setting, and this field refers to the Clients table
This table stores the mapped entitiesbetween the various clients. This table facilitates the key lookup processduring data synchronization between the clients.
Source
ID of the source client, and this field refers to the Clients table
SourceKey
ID of the entity at the source node
Destination
ID of the destination node, and this field refers to the Clients table
DestinationKey
ID of the entity at the destination node
Entity that has to be mapped
This table stores the information of thetenants.
Name of the tenant
Description of the tenant
This table stores the ELIS license.
CustomerID
Name of the license
Type of license
Number
License number
SequenceNumber
Sequence number
IssueDate
Issuing date of the license
ActivationDate
Activation date of the license
ExpirationDate
Expiry date of the license
CheckSum
Check sum
Division
Division ID
Certificate
License certificate
This table stores the information of the jobs for the background task scheduler.
JobID
Name of the job
Description of the job
ConfigurationUI
Details of the configuration UI
AllowConcurrentExecution
Allow concurrent execution flag
ContinueOnError
Continue execution if error flag
JobType
Type of job
Entity unique identifier
This table stores the information of the job activations.
JobActivationID
Configuration
Details of the configuration
LastExecuted
Date and time of the last execution
ExecutionCounter
Execution counter
Enable
Enable the flag
This table stores the information of the job tasks.
TaskID
ExeIndex
Execution index
Isolated
Process isolation flag
[Assembly]
Assembly
This table stores the information of the job triggers.
TriggerID
NextExecution
Date and time of the next execution
Data
Job schedule data
TriggerType
Type of trigger
