Exact Synergy Enterprise login page à Shop floor control page
On this page, you can register the time entries for labor and machine hour items that have to be realized for the selected operation. The Start and Stop buttons on this page allow you to register the time spent on completing the operations. You can also access the overview of time registration from this page to view the statuses of the hour realizations for all operations.
To access this page, the Shop floor control role is required. In addition to that, a few requirements need to be met. For more information, see the Roles and rights section in Logging in to Shop Floor Control via Exact Synergy Enterprise.
Notes:
The information in this document is based on product update 252.
Keep in mind:
Keep in mind: The overview of time registration can also be accessed via the same button on the Quantity complete or Production receipt page.

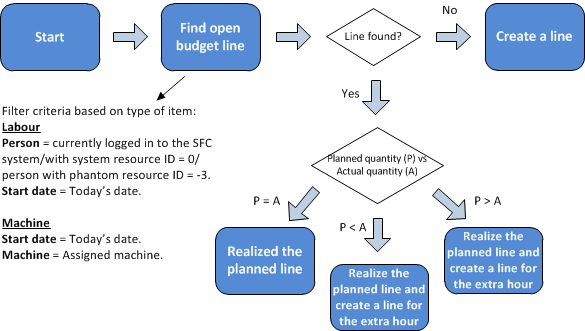

The planned hour items displayed on this page:
When registering time entries, you:
There are two levels of validations performed on this page. The first level of validation is performed on the touch screen, as detailed in the following table:
Scenario
Explanation
No hour item is displayed on the page.
There are several reasons why there are no hour items displayed:
Start time of the hour item is greater than the end time.
This happens when a user clicks Start at 10:00, but the current time of the server is reset to two hours earlier. When the user clicks Stop at 11:00, the server registers it as 09:00.
The same user starting an operation that has already started.
This happens when the same user logs in and accesses to two machines (or more) at the same time, clicks Start on the first machine, and then without refreshing the page, clicks Start on the second machine.
The same user stopping an operation that has already stopped.
This happens when the same user logs in and accesses to two machines (or more) at the same time, clicks Stop on the first machine, and then without refreshing the page, clicks Stop on the second machine.
Operation is completed.
This happens when the back office user changes the operation status to Completed the same time as when the operator accesses the Time registration page.
The second level of validation is performed upon saving the data to Exact Globe Next. See the following table for more explanations:
No serial or batch number assigned to the hour item.
A user can register the hour item line on the Time registration page even if the line does not have a serial or batch item pre-assigned.
Upon saving to Exact Globe Next, this hour item line can still proceed because it is possible to realize machine hour in a production issue with no machine defined.
Click this to save the information and to return to the previous page. For more information, see Viewing details of operations in touch screen user interface.
Click this to view the statuses of the hour realizations for all operations. For more information, see Viewing overview of time registration in touch screen user interface.
Click this to save the information.
Note:
This column displays whether the items are labor or machine hour items.
This column displays the hour items that have to be realized.
This column displays the descriptions of the hour items.
This column displays the types of the hour items, which is either Run or Setup.
Click Start to begin the operation or Stop to stop the operation. Next to this button, the date and time when the operation was last started will be displayed. The date and time are based on the date and time of the server.
Note: Once an operation has started, its status will be changed to Started.
This column displays the IDs and names of people who are linked to or have started the labor hour items.
