Exact Integrator (EI) is a solution that provides real-time integration between Exact Synergy Enterprise and Exact Globe Next whereby data is transferred in real-time between Exact Synergy Enterprise and Exact Globe Next when changes take place in the system.
This document describes the following:
To start the setup, the server must have the following:
The following screen will be displayed after you have logged in to ELIS:

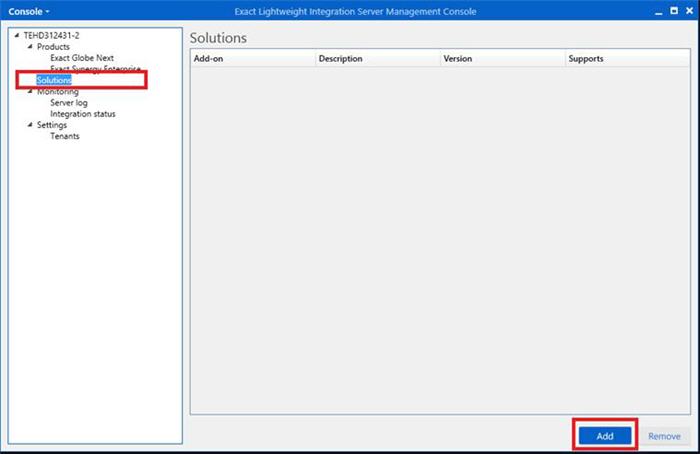

To set up the solution, select Solutions under Products on the left panel in the Exact Lightweight Integration Server Management Console screen, and then click Add. The following screen will be displayed:
Note: The Install add-on screen is used to set up the extended solutions. To set up the Exact Integrator solution, the Exact Integrator package (ExactIntegratorAddon.zip) is required. To download the Exact Integrator package, see Getting started with Exact Lightweight Integration Server (ELIS).

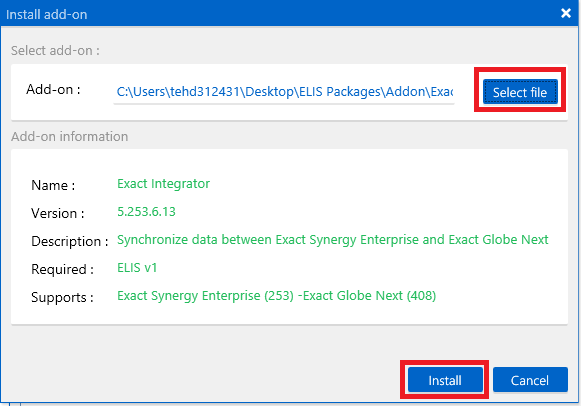

In the Install add-on screen, click Select file at Add-on under the Select add-on section to select the Exact Integration solution package. The details of the solution will be displayed under the Add-on information section. Click Install to install the Exact Integrator solution. The following screen will be displayed:

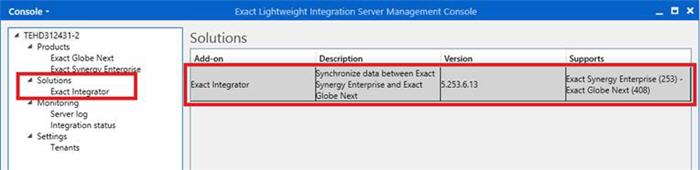

Once the installation has completed, Exact Integrator will be displayed under Solutions on the left panel and under the Solutions section.
After setting up the Exact Integrator solution, you have to configure and activate the solution before the solution can be used.

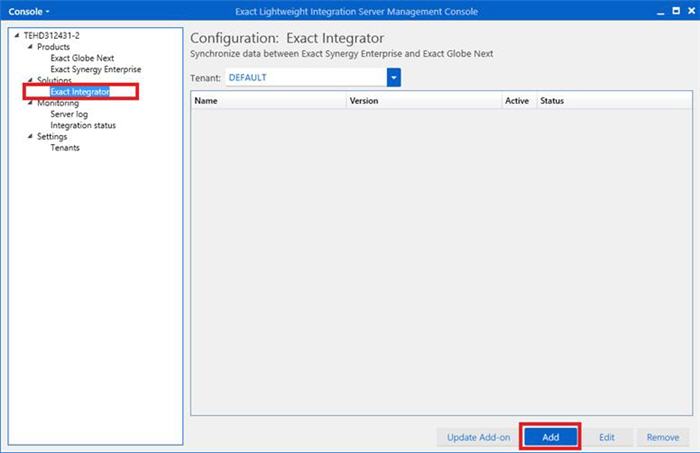

To activate the Exact Integrator solution, click Exact Integrator under Solutions on the left panel, and then click Add. The following screen will be displayed:

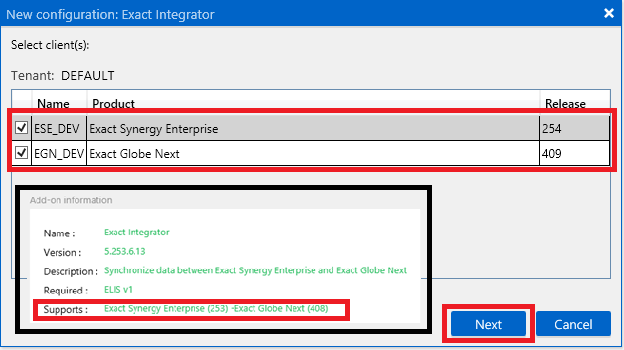

In the New configuration: Exact Integrator screen, select a product under the Select client(s) section, and then click Next. The following screen will be displayed:

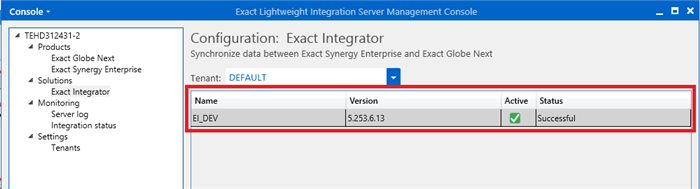

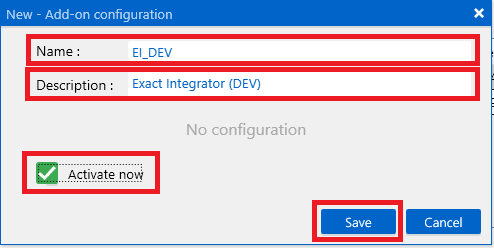

In the New – Add-on configuration screen, type the name of the configurator at Name and the relevant description at Description. Select the Activate now check box to activate the solution, and then click Save. The following screen will be displayed:
