Exact Globe


Product Update 416: Orange payment slip with Swiss QR code introduced for invoices (Swiss legislation)

From 2019 onwards, it will be mandatory to use the new orange payment slip and to have a Swiss QR code printed on each of the invoice or payment slip in Switzerland. The invoice is then sent to the bank, whereby the scanning of the Swiss QR code is done to initiate the automated payment or refund process.

Invoice setting

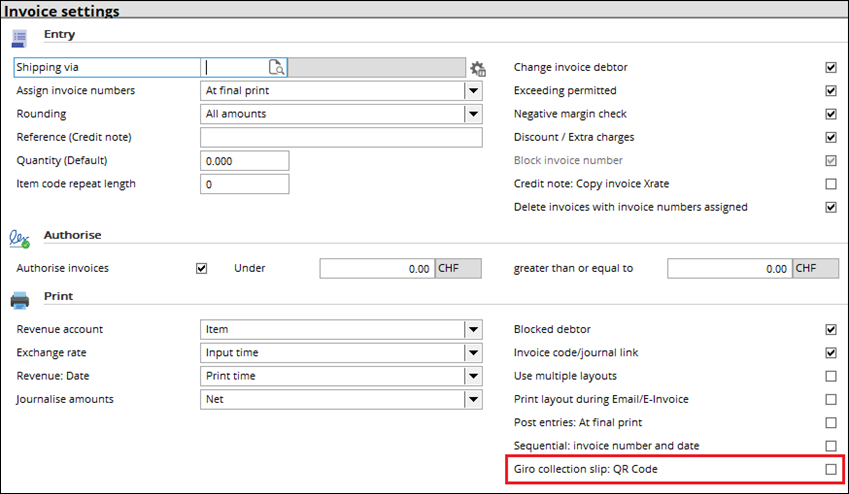

To support the printing of Swiss QR code on invoices or payment slips, the Giro collection slip: QR Code check box has to be selected. This check box is available in the Print section at System General Settings, under the Invoice settings.

By default, this check box is not selected.

Invoice layout

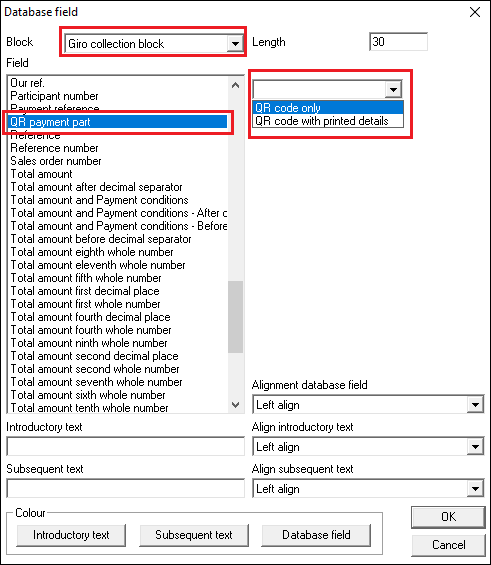

You can modify the Invoice, Direct invoice, Credit note, and Debit credit note layouts at System General Settings, under the Document settings, to include the QR code and other payment details in the invoices. This is done by adding the QR payment part database field (available in the Giro collection block) to the layout. See the following screen for an example:

This new field contains two options:

  • QR code only — The Swiss QR code will be printed on the invoices.
  • QR code with printed details — The Swiss QR code with payment details will be printed on the invoices.

Note that you can reposition the field in the layout according to your preferences. However, do ensure that all the information are properly displayed in the invoices.

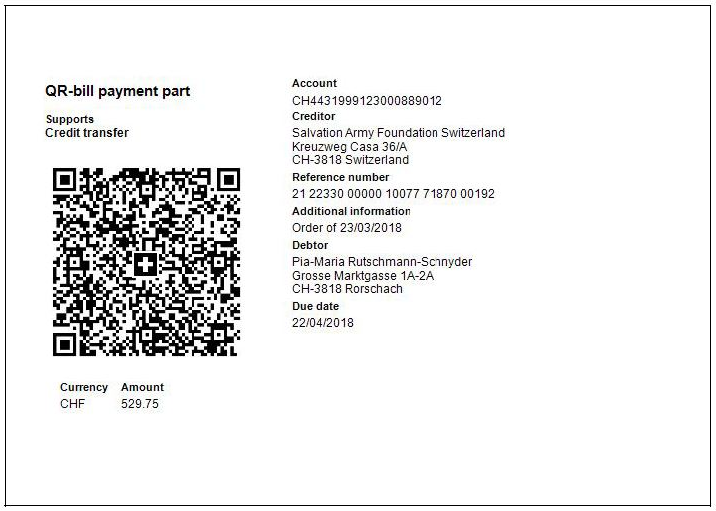

The following is an example of the QR payment part section displayed on an invoice:

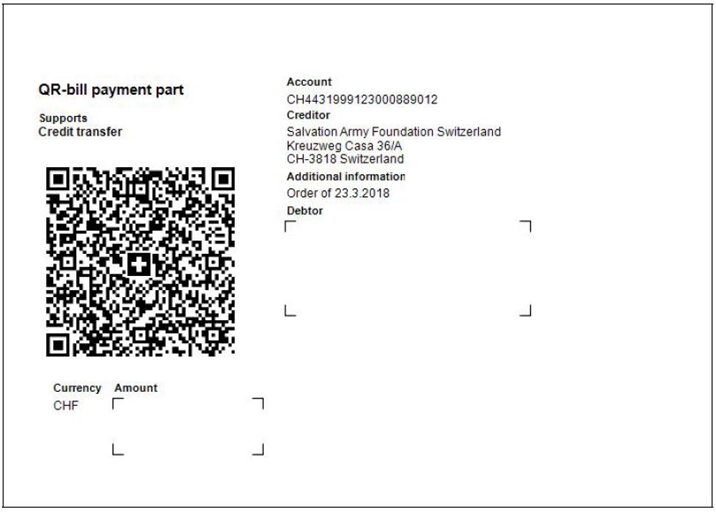

If the debtor is not defined in the Swiss QR code or if the payment amount is zero, the relevant sections will be displayed as follows:

The following table provides more information of the headings in the QR payment part section:

Heading

Description

Account

This is the account to be credited from the Swiss QR code.

Creditor

This is the holder of the account.

Reference number

This is the reference of the QR.

Additional information

This displays other information for the recipient of the bill.

Debtor

This is the name of the debtor.

Due date

This displays the due date proposed by the biller.




 Main Category: Support Product Know How  Document Type: Release notes detail
 Category: Release Notes  Security  level: All - 0
 Sub category: Details  Document ID: 28.396.749
 Assortment:  Date: 28-05-2018
 Release: 416  Attachment:
