Exact Globe Next REST services

1.1 Introduction

Exact provides Windows entity services which use the SOAP protocol and HTTP binding or WSHTTP binding. Since version 405 of Globe Next, Exact also provides REST web services. REST services are generally easier to implement on the client site.

This document will focus on the web services you will need to interact with the financial data in Exact Globe Next. It should come with a demo application: EGN_REST_Example and sources.

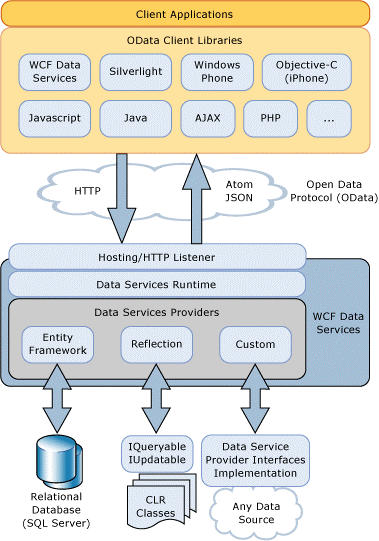

1.2 Architecture

REST stands for Representational State Transfer. REST is not a protocol or standard but a design architecture. It is an attempt to offer a more simple way for machine interaction than complex mechanisms like CORBA, RPC and SOAP. REST services do this by using simple HTTP requests to exchange data.



Like SOAP web services, REST web services are platform independent and language independent. You can implement your client on for example UNIX or Windows and use any language. All popular languages (like VB.Net, C#, Java, JavaScript, Python, etc.) offer libraries to make the use of REST services easy.

Although REST is a lightweight architecture it offers all functionality also available with for example SOAP. REST offers all four CRUD (create, read, update and delete) operation by using HTTP requests (PUT, GET, DELETE). Please note that not all Exact web services implement all four CRUD operations.

To exchange the data Exact uses the open data protocol. Exact has implemented two data schema’s that can be used:
1) Atom XML
2) JSON

In a .Net environment Atom XML is most convenient, because .Net offers a good XML library. In a JavaScript environment JSON will be preferred, because JSON is a text representation of a JavaScript Object.
Exact Globe REST services are not governed by IIS and the service model credentials, therefore you must authenticate yourself. The Exact web services use NTLM as authentication mechanism. Beside this there is some extra information that must be passed with a HTTP request to use the correct company (database). In the HTTP request header you must provide:

• ServerName
• DatabaseName

See below for an example of the HTTP header:

GET http://dijk177740-vpc2:8020/services/Exact.Entity.REST.EG/Account/?$top=10&$filter=DebtorCode%20eq%20'%20%20%20%20%20%20%20%20%20%20%20%20%20%20%2060089' HTTP/1.1

ServerName: (local)\SQL2012

DatabaseName: MacBean_GL

Content-Type: application/atom+xml

Accept: application/atom+xml,application/xml; charset=utf-8

Host: dijk177740-vpc2:8020

Connection: Keep-Alive

By default Exact REST services are configured to use port 8020, you can change this in the Exact.WindowsService.config configuration file (Program Files\Exact Software\XMD).

1.3 Reference

Below are some web sites that might come in use when developing with REST services.

• http://www.odata.org/
• http://msdn.microsoft.com/en-us/library/ff478141.aspx
• http://rest.elkstein.org/

Also the Exact database documentation: 10.517.110 will be useful.

• Development environment like:
  • Visual studio 2012
  • Eclipse
• Browser:
  • Internet explorer
  • Firefox
  • Chrome
• Network monitor tools:
  • Fiddler (https://fiddler2.com/fiddler2/ )
  • Wireshark (https://www.wireshark.org/ )
• Text editors:
  • Notepad++ (with XML tools)
  • UltraEdit
  • XML Spy

The examples in this document are written in VB.Net. All examples are in a single .Net 4.0 windows form application. In the text the main functions will be discussed. To develop and test the examples I used the following tools:

• Windows 7
• Exact Globe Next 405 (with a Mac Bean demo database)
• Visual studio 2012
• Internet explorer
• Fiddler
• Notepad++

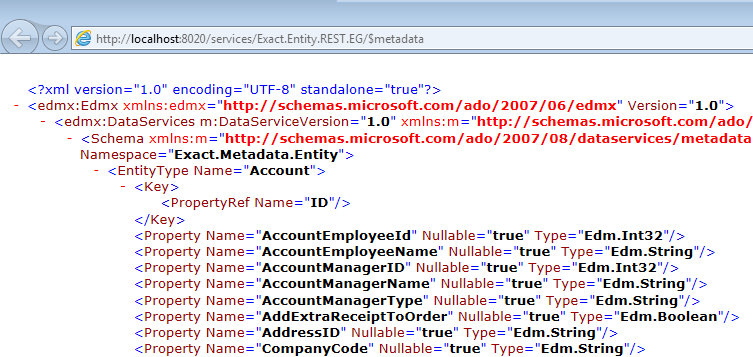

http://localhost:8020/services/Exact.Entity.REST.EG/$metadata

This service returns an XML file with the metadata of all available entities.

The most simple operation is retrieving data. This can be done with a simple HTTP GET request without any data payload. You can use “open data URL queries” to filter, sort and select data.

4.1 Open data query options

• $top
• $filter
• $select
• $orderby

$top is used to pass the (max) amount of records you want to retrieve.
$filter is used to pass the filtering you want to apply on the data. The following logical operations are supported:

• eq Equal
• ne Not equal
• gt Greater than
• ge Greater than or equal
• lt Less than
• le Less than or equal
• and Logical and

$select is used to limit the properties that are retrieved. This is a comma separated list of property names.
$orderby is used to define the order of the records that are retrieved. This is a comma separated list and you can make use of asc and desc to change the sort order.

4.2 Retrieve URL

Combining the different operations, an URL to retrieve a debtor can look like:
http://localhost:8020/Services/Exact.Entity.REST.EG/Account/?$top=10&$filter=DebtorCode eq ' 60089'&$orderby=DebtorCode&$select=DebtorCode

4.3 Debtor metadata

The most important properties of the debtor entity are:

Field	Property	Value	Example
Debtor code	DebtorCode	Contract number from Euroweb CRM. Value will have less than 20 character and is numeric	12345678
Debtor name	AccountName	Customer name	Red bean coffee GmbH
Address 1	AddressID@VIS	Visit address including house number of the customer	Hansallee 299
Address 2	AddressID@VIS	Optional: extra address line for example if address 1 is too short
Postal code	AddressID@VIS	Postal code	12345
City	AddressID@VIS	City	Karlsruhe
Country	AddressID@VIS	(ISO) Country code of customer	DE
Phone number	PhoneNumber	Phone number	1234-567890
Fax number	FaxNumber	Fax number	1234-567899
Email	EmailAddress	Email address	Peter.von.Munchhause@Redbean.de
Payment condition	PaymentCondition	Payment condition code to be used in Exact Globe	07
Title	JobTitle	Title code of the main contact person	HR
Initials	ContactInitials	Initials of the main contact person	P.H.M.
First name	ContactFirstName	First name of the main contact person	Peter
Middle name	ContactMiddleName	Middle name of the contact person	Von
Last name	ContactLastName	Last name of the main contact person	Munchhausen
Job description	JobTitleDescription	Job description of main contact person	Geschaftsfuhrer

The visit address information must be retrieved using the “Address” service. The ID can be retrieved from the “AddressID” property with attribute “@VIS”.

4.4 Example

The example application uses some help functions:

Private Function RequestAndResponse(ByVal xml As String, ByVal method As String, ByVal url As String) As String

Private Function GetPropertyValue(ByVal xml As String, ByVal p As String) As String

Private Function CreateXMLDoc(ByVal entity As String) As XmlDocument

The function RequestAndResponse is used to create the HTTP request, send it to the REST service and retrieve the response message.

In this function an HttpWebRequest is created and the following properties are set:

• Credentials (You have to use NTLM credentials)
• Headers
  • ServerName (This is the SQL server name of the Globe company)
  • DatabaseName (This is the Globe company (database))
• ContentType (This is the type of the payload, in this case atom+xml)
• Accept (This is the type of the response, in this case also atom+xml)
• Method (This is the HTTP method, GET, POST, DELETE)

With httpRequest.GetResponse() the HttpWebResponse object is retrieved.

The function GetPropertyValue is used to retrieve the value of a property from the response xml.

This function is a help function to extract property values of the entity from the response message. It is important to realize that the response message has multiple namespaces, so you must specify the namespaces in your XPath query.

The CreateXMLDoc function will be discussed in the next chapter. This function creates the skeleton of the XML payload to send with the HTTP POST request.

Retrieving a debtor is done in:

Private Sub RetrieveDebtor()

In the RetrieveDebtor method you can see that no XML payload is send with the HTTP request. It calls the REST services with a HTTP request with the GET method and a URL with some query options.
The data payload xml and response xml are written to the TextBox: tbMessage. You can also use Fiddler to inspect the RAW HTTP messages.


5.1 HTTP request

For creating data you must use the POST method of the HTTP request and send an XML payload with the data. Like retrieval you must pass the database name and server in the header of the request. The payload is an XML message using the atom+xml protocol.

5.2 Metadata

The most important properties of the BankAccount service are:

Field	Field	Value	Example
Debtor GUID	AccountID	Debtor GUID as used in Exact. Getting the GUID is done using the following steps: Request debtor data from CRM using the debtor code Receive debtor GUID from Exact Globe Pass debtor GUID to bank account service	4F017C70-8178-4B2D-A885-C08F46530B30
Bank account number	BankAccountNumber	The bank account number of the debtor (this could also be the IBAN number)	111-111-11 1111111111
Bank account type	BankAccountType	Bank account type	DE
IBAN	IBAN	The IBAN number of the bank account number	DE63111111111111111111
BIC Code	BICCode	The BIC code belonging to the bank account number	MARKDEFF
Account number	AccountNumberBank	The account number with the bank	111-111-11 1111111111
SWIFT address	SWIFTAddress	The SWIFT address belonging to the bank account number	MARKDEFFXXX
Bank code	BankAccountCode	The bank code belonging to the bank account number	MARK

5.3 Example

The example uses a help function to create the basic XML skeleton for the data payload:

Private Function CreateXMLDoc(ByVal entity As String) As XmlDocument

The function CreateXMLDoc is a help function to set up the basis of the XML message that will be send as payload with the HTTP request (method POST).

Below is an example of the XML message that will be send to create a bank account.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>

<entry xmlns:d="http://schemas.microsoft.com/ado/2007/08/dataservices" xmlns:m="http://schemas.microsoft.com/ado/2007/08/dataservices/metadata" xmlns="http://www.w3.org/2005/Atom">

    <category scheme="http://schemas.microsoft.com/ado/2007/08/dataservices/scheme" term="Exact.Metadata.Entity.BankAccount" />

    <title />
    <author>
        <name />
    </author>
    <updated>2012-12-04T10:21:54.2535732Z</updated>
    <id />
    <content type="application/xml">
        <m:properties>
            <d:AccountID>{e11c4af3-7fa9-4a61-9152-4a8b7743f911}</d:AccountID>
            <d:BankAccountType>NL</d:BankAccountType>
            <d:BankAccountNumber>0417164300EUR</d:BankAccountNumber>
            <d:IBAN>NL91ABNA0417164300</d:IBAN>
            <d:BICCode>ABNANL2A</d:BICCode>
            <d:AccountNumberBank>0417164300</d:AccountNumberBank>
        </m:properties>
    </content>
</entry>

Please be aware that the XML message contains three different namespaces. It is important to give the XML elements the correct namespace otherwise the server does not interpret your message correctly.

xmlns:d="http://schemas.microsoft.com/ado/2007/08/dataservices"
xmlns:m="http://schemas.microsoft.com/ado/2007/08/dataservices/metadata
xmlns="http://www.w3.org/2005/Atom"

The CreateXMLDoc function creates all XML notes except the dataservice nodes (namespace alias “d”) these are filled in the CreateBankAccount function.

The bank account is created in:

Private Sub CreateBankAccount()

The CreateBankAccount sub adds the dataservice nodes to the XML with the properties of the bank account you want to create. You link the bank account to the debtor on basis of the GUID of the debtor.

element = doc.CreateElement("d", "AccountID", NS_DATASERVICE)
element.InnerText = "{e11c4af3-7fa9-4a61-9152-4a8b7743f911}" 'GUID of the debtor
properties.AppendChild(element)

You first have to create all lines of the entry. When you create the first line a transaction key is generated and returned. You must provide this key with the subsequent lines and header. After you created all lines you must create the header line. At that moment the complete entry (lines and header) are validated and committed to the database.

6.1 Metadata

The most important properties of the sales journal header (“FinancialHeader”) service are:

Field	Property	Value	Example
Journal code	Journal	The sales journal code	50
Date	EntryDate	The sales invoice date	31.12.2013
Entry number	EntryNumber	Invoice number from CRM	12100001
Debtor code	DebtorNumber	Debtor number belonging to the Debtor code/contract number from CRM	850012
Our reference	OurReference	Invoice number from CRM	12100001
Amount	Amount	Total amount (including VAT)	125
Payment condition	PaymentCondition	Payment condition code applicable for this invoice	55

The most important properties of the sales journal line (“FinancialLine”) service are:

Field	Property	Value	Example
General ledger account	GLAccount	The general ledger account code (used in the financial administration)	8000
VAT code	VATCode	The VAT code to be used. If the VAT amount is delivered separately (in a different line) a VAT code for zero VAT should be entered here	0
Amount	Amount	Line amount (excluding VAT)	125
Description	Description	A description for the line (for example a description of the service)	Setup fee

6.2 Example

The following methods and functions are used in the demo application to create a sales journal entry:

Private Sub CreateFinEntry()

Private Function CreateFinLine(ByVal transactionKey As String, ByVal journal As String, ByVal generalLedger As String, ByVal description As String, ByVal amount As Double , ByVal vat As String) As String

Private Sub CreateFinHeader(ByVal transactionKey As String, ByVal journal As String, ByVal debtor As String, ByVal description As String, ByVal amount As Double, ByVal paycondition As String)

Please note that the basis of the XML message is created in CreateXMLDoc.

The CreateFinLine function adds the dataservice nodes to the XML message and does a call to RequestAndResponse to create the line and retrieve the response from the server. CreateFinLine returns the transaction key for use in the CreateFinHeader function.

Return GetPropertyValue(httpResponse, "d:TransactionKey")

The CreateFinHeader function creates the header line of the financial entry. It is important to fill the TransactionKey property so the server knows which lines and header belong together. After the server has done a successful validation of all lines and header data, the sales journal entry is written to the database.

6.3 Providing payment terms

It is also possible to provide your own payment terms when creating a sales journal entry. If you don’t provide a payment term Exact Globe Next will generate one for you. Please note that this is a write only service.

6.3.1 Metadata

The most important properties of the payment terms (“FinancialPaymentTerm”) service are:

Field	Property	Value	Example
Entry number	EntryNumber	Invoice number from CRM	12100001
Due date	DueDate	Due date for the payment term	31.12.2013
Amount	AmountDC	Amount to be paid	125
Amount in currency	AmountInTransactionCurrency	Amount tob e paid in the transaction currency	125
Currency code	TransactionCurrencyCode	Currency code of the transaction	EUR
Vat code	VATCode	The VAT code of the payment term	2
Cash instrument	OwnBankAccount	Reference to own bank account number to which the money is transferred (refer to database field: BankAccounts.BankAccount)	44444444EUR
Method	PaymentCondition	Payment method	Collection
Type	PaymentType	Type of payment (refer to database documentation of field BankTransactions.PaymentType)	“C”, on credit; “I” collection; etc.
Cash instrument customer	OffsetBankAccount	Existing bank account number linked to customer (refer to database field: BnkAcc.Banknr)	11111111
Description	Description	Description for this payment term	Invoice
Transaction type	TransactionType	Type of the transaction	K (sales invoice)
Status	Status	Status of the payment term	C (entered)
Type	Type	Type of the payment term	W (installment)
Offset general ledger	OffsetLedgerAccountNumber	The debtor or creditor G/L account used in the financial entry	1300

For more fields and their allowed values, please refer to the Exact Globe Next database documentation: 23.945.872. Please note that the database field names might slightly differ from the property names, but they will be very similar.

6.3.2 Example

The payment terms must be created before the financial header line is created. The financial header line will validate all entry information, including payment terms. If you don’t provide your own payment term the creation of the header line will create a default payment term.

The following method creates a (simple) payment term. It includes the minimum of properties that must be set:

Private Sub CreateFinPaymentTerm(ByVal transactionKey As String, ByVal amount As Double, ByVal debtor As String, ByVal method As String, ByVal description As String, ByVal ownBankNumber As String, ByVal debtorBankNumber As String)

The function CreateFinPaymentTerm creates the payment term. As you can see you need to provide the TransactionKey property to link the payment term to the sales journal entry. Beside this you need to provide the amount in the default currency AmountDC and in the transaction currency AmountInTransactionCurrency. You must also provide some type and status information:

element = doc.CreateElement("d", "TransactionType", NS_DATASERVICE)
element.InnerText = "K" 'Sales invoice
properties.AppendChild(element)

element = doc.CreateElement("d", "Status", NS_DATASERVICE)
element.InnerText = "C" 'Entered
properties.AppendChild(element)

element = doc.CreateElement("d", "Type", NS_DATASERVICE)
element.InnerText = "W" 'Installment
properties.AppendChild(element)

7.1 Metadata

In addition to the metadata in Chapter 6 there are the following properties that are important for the outstanding amount.


Field	Property	Value	Example
N/A	PaymentStatus	Payment status of the financial entry: -       Empty -       Partailly paid -       Fully paid	Empty
N/A	PaymentReceived	Amount of payment received	50
N/A	PaymentReceivedTC	Amount of payment received in the transaction currency	50
N/A	OutstandingAmount	Amount outstanding	50
N/A	OutstandingAmountTC	Amount outstanding in the transaction currency	50

7.2 Example

The example is very similar to the retrieval of debtor information. Only after the retrieval of the first record there is a while loop to retrieve all successor records. The successor record can be found in the <link> property of the response:

<link rel="next" href="http://dijk177740-vpc2:8020/services/

Exact.Entity.REST.EG/FinancialHeader/?$filter=(Journal%20eq%20'%2070')%20and%20(DebtorNumber%20eq%20'%2060089')%20and%20(FinancialYear%20eq%202013)&amp;$top=1&amp;$skiptoken=8604L" />

In the function: “RetrieveOutstandingAmount” is shown how to iterate through all entries. In The function: “GetNextUrl” is shown how the retrieve the URL of the next record.


8.1 Metadata

Field	Property	Value	Example
TextField1	TextFreeField1	A customer definable text field.	A customer text

8.2 Example

Updating a debtor is done in:

Private Sub UpdateDebtor(ByVal debtorCode As String)

When an entity is updated you must provide the key property, in the case of a debtor this is the property ID. So first the ID of the debtor is retrieved (see also the chapter about retrieving debtors).

Next a new XML message is created to update the TextFreeField1 of the debtor. This XML message is send to the REST service using the MERGE operation.

element = doc.CreateElement("d", "TextFreeField1", NS_DATASERVICE)
element.InnerText = "updated: " & Now().ToUniversalTime()
properties.AppendChild(element)

content.AppendChild(properties)

'merge the changes
url = GLOBE_URL & "Account(guid'" & id & "')"
response = RequestAndResponse(doc.OuterXml, "MERGE", url)

• Creating a sales order.
• Creating an hour entry.

9.1 Create a sales order

A sales order is created in the same way as a financial entry. So first create all the order lines and next create the header line. All lines and the header are linked together using the TransactionKey property.

Private Sub CreateSalesOrder()
Private Function CreateSOLine(ByVal transactionKey As String) As String
Private Sub CreateSOHeader(ByVal transactionKey As String)

9.2 Create an hour entry

Creating an hour entry is very similar to creating a debtor. It is a single entity.

Private Sub CreateSOHeader(ByVal transactionKey As String)

9.3 VB6

It’s also possible to call the REST services from a VB6 application.

In VB6RestDemoGlobe.zip you find an example on how to retrieve and create an account. The code is very similar to the VB.Net example.

In VB6RestDemoMandate.zip you find an example on how to upload a mandate to a bank account using VB6.

9.4 Javascript

In AJAX_EGN_REST_Demo.htm you find and example on how to retrieve, update and create accounts using Javascript. Please note that normally you will not run this kind of code client site. It’s just to show that the use of the Globe services is platform independent.
