PU 423, 422, 421 (Globe) and 500, 422, 421 (Globe+): Additional information included in the QR-bill (Swiss legislation)
Exact Globe Next has been supporting QR code version 2.1 since product update 421. For more information, see Product Updates 421, 420, 419, and 418: Updated QR-bill (Swiss legislation).

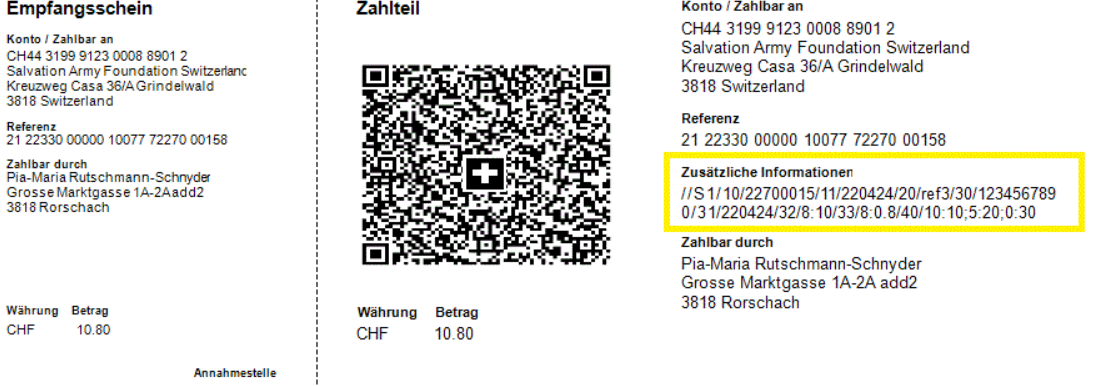

In this product update, you can have extra information in the QR code whereby the additional information will be divided into ten columns.
For example, you can add the following information:
| Columns
|
Description
|
| // |
Delimiter |
| S1 |
Prefix |
| 22700015 |
column /10/ value: invoice number |
| 220424 |
column /11/ value: invoice date (format:yymmdd). Invoice date from the Print invoice screen, not the transaction date |
| ref3 |
column /20/ value: Invoice Your reference |
| 1234567890 |
column /30/ value: company VAT (without prefix and non-numeric: 'CHE','-','.',' ','MWST','TVA','IVA','VAT') |
| 220424 |
column /31/ value: when top1 is cash VAT then '' otherwise invoice date (format:yymmdd). Invoice date from the Print invoice screen, not the transaction date |
| 8:10;2:10 |
column /32/ value: (group of) VATrate: VATbasis |
| 8.0.8;2:0.2 |
column /33/ value: (group of) VATrate:VATamount |
| 10:10;5:20;0:30 |
column /40/ value: invoice payment condition
|
Note: NovaPDF is not supported for the latest QR bill printing due to known limitation with regards to sizing. It is advised to use another PDF software so that there is no sizing issue.
