Exact Globe


PU 424|423|422 (Globe): Improved QR-bill output (Swiss legislation)

In the Swiss legislation, there is existing functionality to print out QR-bill as documented in PU 423, 422, 421 (Globe) and 500, 422, 421 (Globe+): Additional information included in the QR-bill (Swiss legislation). This has been improved continuously. The current improvements include:

  • New QR: Perforationslinie option to print perforated line in the QR-bill. Previously, the perforated line was printed by default and there was no option to disable it. This option is now available for the Swiss legislation in the following menu paths:
    • Invoice > Entries > Invoices (in the Advanced tab when processing and preparing to print the invoices)
    • Invoice > Entries > Direct invoices (in the Advanced tab when processing and preparing to print the invoices)
    • Invoice > Entries > Print/Process (in the Advanced tab when processing and preparing to print the invoices)
    • Invoice > Reports > Invoice History (when Invoice history option is selected at the point of processing and preparing to print the invoices)
  • Adjustments to the resolution, spacing, and alignment of the QR-code.

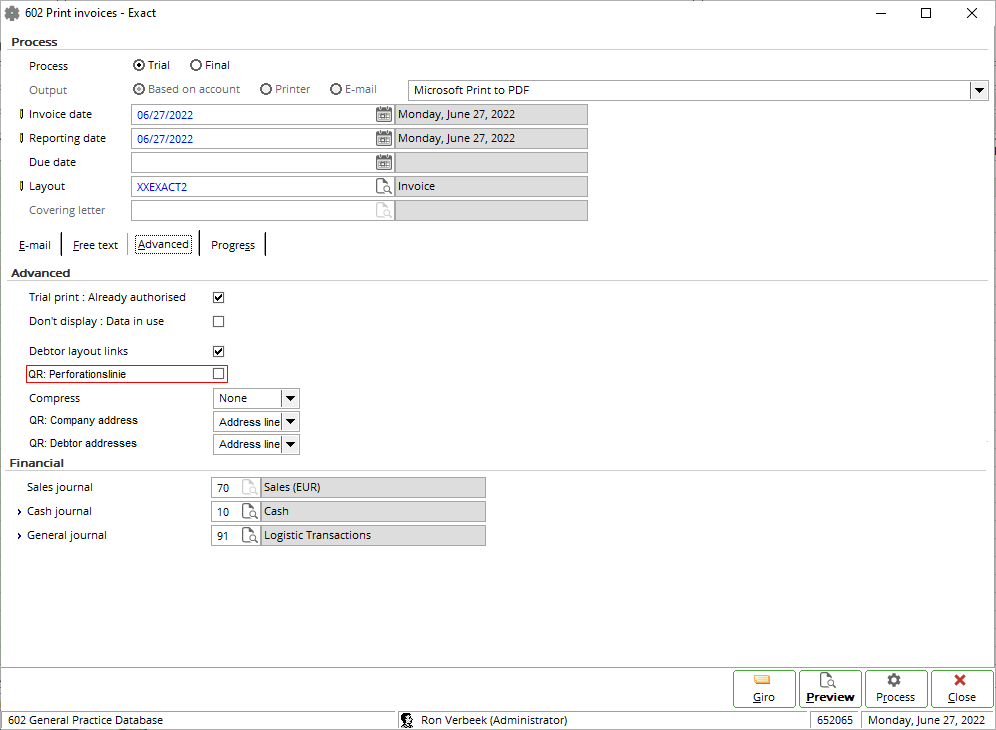

An example of the new field is as follows:

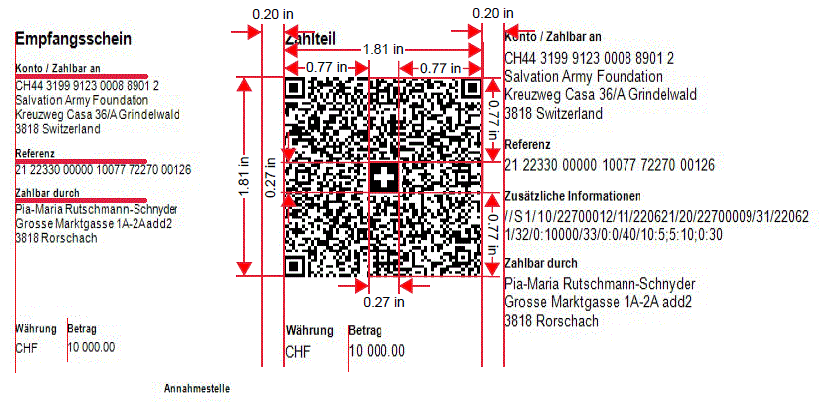

An example of the updated QR-bill without perforation line is as follows:




 Main Category: Attachments & notes  Document Type: Release notes detail
 Category:  Security  level: All - 0
 Sub category:  Document ID: 30.770.883
 Assortment:  Date: 04-07-2022
 Release: 423  Attachment:
